Installation Guide

The pgEdge AI DBA Workbench consists of four components: a collector, a server, an alerter, and a web client.

Installation Paths by Method

The Workbench supports three deployment methods: pre-built binary files or source code from GitHub, Docker, and RPM/DEB packages from pgEdge.

Each method places files in different locations. The following table summarizes the locations for each deployment method.

The installation steps below demonstrate the GitHub release method with sample paths; adjust the paths to match your deployment method.

System Requirements

The following minimum requirements apply to all deployment environments.

The collector, server, and alerter components share the following hardware requirements:

• A minimum of 4 CPU cores is required.
• The system requires at least 16 GB of RAM.
• The installation requires 120 GB of disk space for binaries and the datastore.

Before installing the Workbench with binary files or building the project from source, install the following software:

• Go 1.24 or later is required for building server-side components.
• Node.js 18 or later is required for building the web client.
• PostgreSQL 14 or later is required for the datastore.
• Make is required for build automation.
• nginx is required to serve the client.

Each component requires specific network access to operate correctly:

• The collector requires network access to each monitored PostgreSQL server.
• The alerter requires network access to the datastore.
• The server requires network access to the datastore and must be reachable by web client users.
• Database credentials for the datastore and each monitored PostgreSQL server are required.

Using Binary Files to Install Workbench

The GitHub releases page provides pre-built binaries for each release. Each release includes the following components:

• The ai-dba-collector binary for the collector service.
• The ai-dba-server binary for the server service.
• The ai-dba-alerter binary for the alerter service.
• The ai-dba-client.tar.gz archive containing pre-built web client files.

The Quick Start Guide contains detailed instructions for using binary files to install and configure the Workbench.

Building AI DBA Workbench from Source Code

The project uses Makefiles for building and testing; all components can be built from the top-level directory.

In the following example, the make command builds all components:

make all

In the following example, the make command builds the collector component individually:

cd collector && make build

After completing the installation, create configuration files and configure each component for your environment. Copy sample configuration files from the GitHub repository:

• The Collector Configuration file describes datastore and connection pool settings. The collector.yaml file must include the location of:

  • The secret_file
  • The password_file

• The Server Configuration file describes authentication, TLS, and LLM settings. The server.yaml file must include:

  • The secret_file
  • The password associated with the user that owns the /opt/ai-workbench/data directory (under the database: section).

• The Alerter Configuration file describes threshold and anomaly detection settings. The alerter.yaml file must include:

  • The secret_file
  • The password_file

• The Client Configuration file describes proxy and build settings.

Configuring systemd Services

The following sections provide details about creating systemd service files to run each component as a background service.

Collector Service

The collector service file configures the collector to start automatically and restart on failure.

Create the service file at /etc/systemd/system/pgedge-ai-dba-collector.service; replace the user_name placeholder with the name of the operating system user account that owns the /opt/ai-workbench/data directory:

[Unit]
Description=pgEdge AI DBA Workbench Collector
After=network.target postgresql.service

[Service]
Type=simple
User=user_name
WorkingDirectory=/opt/ai-workbench
ExecStart=/opt/ai-workbench/ai-dba-collector \
    -config /etc/pgedge/ai-dba-collector.yaml
Restart=on-failure
RestartSec=10

[Install]
WantedBy=multi-user.target

Server Service

The server service file configures the server to start automatically and restart on failure.

Create the service file at /etc/systemd/system/pgedge-ai-dba-server.service; replace the user_name placeholder with the name of the operating system user account that owns the /opt/ai-workbench/data directory:

[Unit]
Description=pgEdge AI DBA Workbench Server
After=network.target postgresql.service

[Service]
Type=simple
User=user_name
WorkingDirectory=/opt/ai-workbench
ExecStart=/opt/ai-workbench/ai-dba-server \
    -config /etc/pgedge/ai-dba-server.yaml
Restart=on-failure
RestartSec=10

[Install]
WantedBy=multi-user.target

Alerter Service

The alerter service file configures the alerter to start automatically and restart if the process exits.

Create the service file at /etc/systemd/system/pgedge-ai-dba-alerter.service; replace the user_name placeholder with the name of the operating system user account that owns the /opt/ai-workbench/data directory:

[Unit]
Description=pgEdge AI DBA Workbench Alerter
After=network.target postgresql.service

[Service]
Type=simple
User=user_name
WorkingDirectory=/opt/ai-workbench
ExecStart=/opt/ai-workbench/ai-dba-alerter \
    -config /etc/pgedge/ai-dba-alerter.yaml
Restart=always
RestartSec=10

[Install]
WantedBy=multi-user.target

Enable and Start the Services

Use systemctl to reload the daemon and enable each service.

In the following example, the systemctl commands reload the daemon, enable all services, and start each one:

sudo systemctl daemon-reload
sudo systemctl enable pgedge-ai-dba-collector
sudo systemctl enable pgedge-ai-dba-server
sudo systemctl enable pgedge-ai-dba-alerter
sudo systemctl start pgedge-ai-dba-collector
sudo systemctl start pgedge-ai-dba-server
sudo systemctl start pgedge-ai-dba-alerter

In the following example, the systemctl status command checks the status of each service:

sudo systemctl status pgedge-ai-dba-collector
sudo systemctl status pgedge-ai-dba-server
sudo systemctl status pgedge-ai-dba-alerter

Running the Workbench

Before running the Workbench, add a user to the auth.db file. The auth.db file is the server's own database for user credentials, storing authentication details only for AI Workbench. Use the command:

/opt/ai-workbench/ai-dba-server -add-user -username user_name

The command prompts you for a Workbench password, and optional user details. In the following example, the command creates a login for the AI DBA Workbench server:

/opt/ai-workbench/ai-dba-server -add-user -username susan
Enter password:
Confirm password:
Enter full name (optional): Susan
Enter email address (optional): susan@pgedge.com
Enter notes for this user (optional):

======================================================================
User created successfully!
======================================================================

Username:  susan
Full Name: Susan
Email:    susan@pgedge.com
Status:   Enabled
======================================================================

Copy the client files to the appropriate directory:

sudo mkdir -p /opt/ai-workbench/client
sudo cp -r assets index.html favicon.ico /opt/ai-workbench/client/

Install and configure nginx to serve the client files and proxy API requests to the server:

sudo apt install nginx

Create the nginx configuration file at /etc/nginx/sites-available/ai-dba-workbench:

server {
    listen 80;
    server_name your_server_hostname_or_ip;

    root /opt/ai-workbench/client;
    index index.html;

    location /api/ {
        proxy_pass http://localhost:8080;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }

    location /mcp/ {
        proxy_pass http://localhost:8080;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_buffering off;
        proxy_cache off;
        proxy_read_timeout 300s;
    }

    location = /health {
        proxy_pass http://localhost:8080;
    }

    location / {
        try_files $uri $uri/ /index.html;
    }
}

Enable the configuration and restart nginx:

sudo ln -s /etc/nginx/sites-available/ai-dba-workbench /etc/nginx/sites-enabled/ai-dba-workbench
sudo rm /etc/nginx/sites-enabled/default
sudo nginx -t
sudo systemctl restart nginx

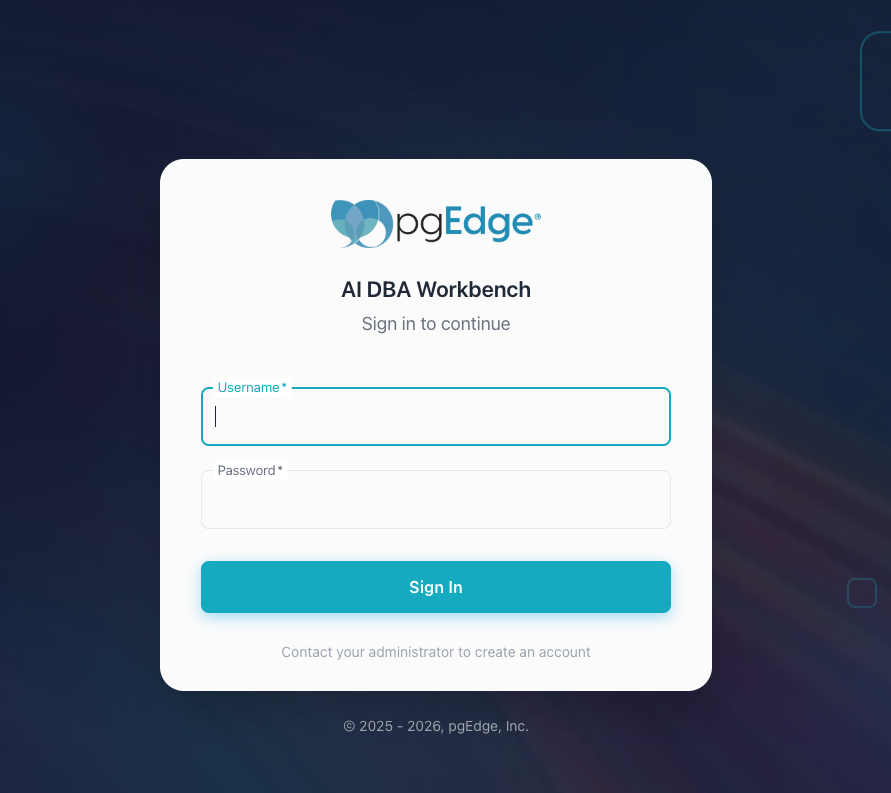

Open a browser and navigate to http://<server-ip>; provide authentication details when the Workbench opens.

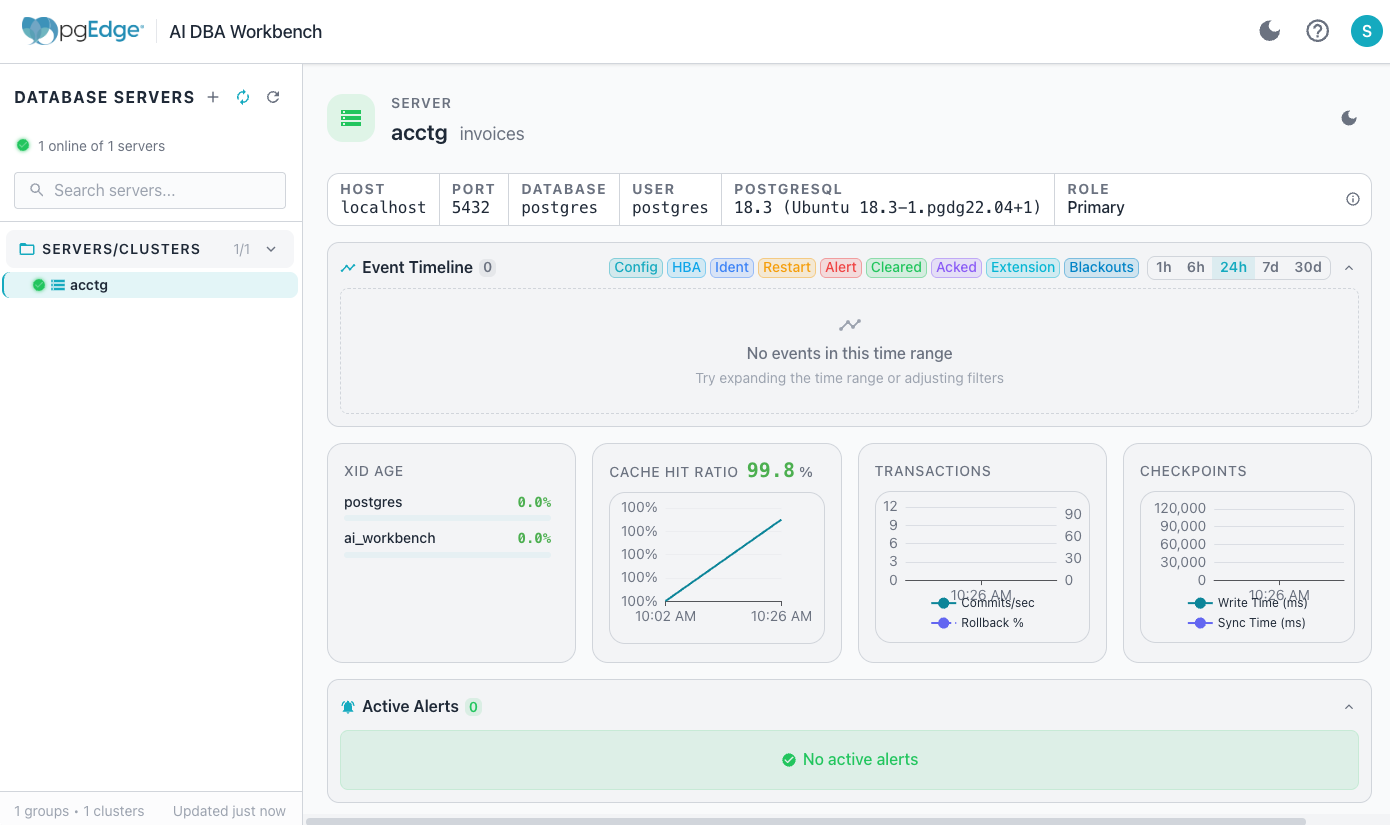

After logging into the Workbench, you are ready to create a connection to your Postgres server; select the '+' next to the DATABASE SERVERS heading in the left navigation panel to add a server definition.

Connecting to a Local PostgreSQL Server

By default, the server blocks connections to internal and private IP addresses. To monitor a PostgreSQL instance on the same host or local network, enable internal network connections in the server configuration file:

sudo vi /etc/pgedge/ai-dba-server.yaml

Locate the connection_security section and set allow_internal_networks to true:

connection_security:
  allow_internal_networks: true

Restart the server to apply the change:

sudo systemctl restart pgedge-ai-dba-server

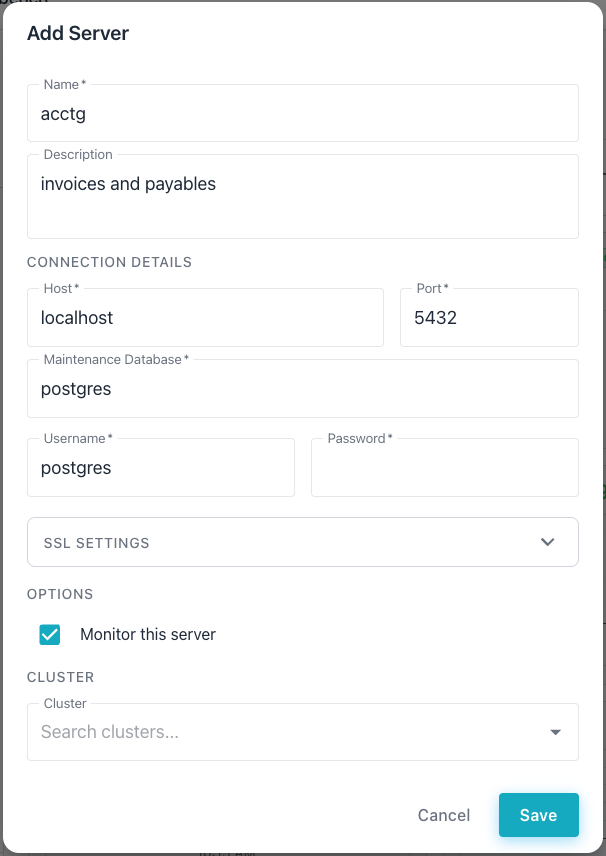

Then, when you define a server, provide connection details and specify localhost in the host name before selecting Save to connect.

Verifying the State of Individual Components

After starting all components, verify the installation by completing the following steps.

Checking the Collector

The collector logs probe executions to stderr. Use the following command to confirm the collector is running:

sudo systemctl status pgedge-ai-dba-collector

A successful response confirms the collector is running:

pgedge-ai-dba-collector.service - pgEdge AI DBA Workbench Collector
 Loaded: loaded (/etc/systemd/system/pgedge-ai-dba-collector.service; enabled; vendor preset: enabled)
 Active: active (running) since Tue 2026-05-12 14:45:17 UTC; 24h ago
Main PID: 59722 (ai-dba-collecto)
   Tasks: 12 (limit: 4527)
  Memory: 16.3M
     CPU: 4.233s
  CGroup: /system.slice/pgedge-ai-dba-collector.service
          └─59722 /opt/ai-workbench/ai-dba-collector -config /etc/pgedge/ai-dba-collector.yaml

May 12 14:45:17 n1 systemd[1]: Started pgEdge AI DBA Workbench Collector.
May 12 14:45:17 n1 ai-dba-collector[59722]: 2026/05/12 14:45:17 pgEdge AI DBA Workbench Collector v1.0.0-beta1 starting...
May 12 14:45:17 n1 ai-dba-collector[59722]: 2026/05/12 14:45:17 Configuration loaded from: /etc/pgedge/ai-dba-collector.yaml
May 12 14:45:17 n1 ai-dba-collector[59722]: 2026/05/12 14:45:17 Schema is up to date
May 12 14:45:17 n1 ai-dba-collector[59722]: 2026/05/12 14:45:17 Datastore connection established
May 12 14:45:17 n1 ai-dba-collector[59722]: 2026/05/12 14:45:17 Probe scheduler started
May 12 14:45:17 n1 ai-dba-collector[59722]: 2026/05/12 14:45:17 Collector is running. Press Ctrl+C to stop.

Checking the Server

The server listens on the configured HTTP port. Use the following command to test connectivity:

curl -s http://localhost:8080/health

A successful response confirms the server is running and accepting requests:

curl -s http://localhost:8080/health
{"status":"ok","server":"pgedge-postgres-mcp","version":"1.0.0-beta1"}

Checking the Alerter

The alerter logs rule evaluations to stderr. Use the following command to confirm the alerter is running:

sudo systemctl status pgedge-ai-dba-alerter

A successful response confirms the alerter is running:

pgedge-ai-dba-alerter.service - pgEdge AI DBA Workbench Alerter
 Loaded: loaded (/etc/systemd/system/pgedge-ai-dba-alerter.service; enabled; vendor preset: enabled)
 Active: active (running) since Tue 2026-05-12 15:32:55 UTC; 23h ago
Main PID: 63620 (ai-dba-alerter)
   Tasks: 12 (limit: 4527)
  Memory: 6.6M
     CPU: 6.382s
  CGroup: /system.slice/pgedge-ai-dba-alerter.service
          └─63620 /opt/ai-workbench/ai-dba-alerter -config /etc/pgedge/ai-dba-alerter.yaml

May 12 15:32:55 n1 ai-dba-alerter[63620]: [alerter] Baseline calculator started (interval: 1h0m0s)
May 12 15:32:55 n1 ai-dba-alerter[63620]: [alerter] Alert cleaner started
May 12 15:32:55 n1 ai-dba-alerter[63620]: [alerter] Calculating baselines for 0 connections, 28 rules (lookback: 7 days)
May 12 15:32:55 n1 ai-dba-alerter[63620]: [alerter] Baseline calculation complete
May 12 16:32:55 n1 ai-dba-alerter[63620]: [alerter] Calculating baselines for 0 connections, 28 rules (lookback: 7 days)
May 12 16:32:55 n1 ai-dba-alerter[63620]: [alerter] Baseline calculation complete
May 13 11:54:51 n1 ai-dba-alerter[63620]: [alerter] Calculating baselines for 0 connections, 28 rules (lookback: 7 days)
May 13 11:54:51 n1 ai-dba-alerter[63620]: [alerter] Baseline calculation complete
May 13 12:54:51 n1 ai-dba-alerter[63620]: [alerter] Calculating baselines for 0 connections, 28 rules (lookback: 7 days)
May 13 12:54:51 n1 ai-dba-alerter[63620]: [alerter] Baseline calculation complete

Checking Metrics Collection

Connect to the datastore and run the following query to verify that metrics tables contain recent data.

In the following example, the psql command connects to the datastore:

sudo -u postgres psql -d ai_workbench
psql (18.3 (Ubuntu 18.3-1.pgdg22.04+1))
Type "help" for help.

In the following example, the SELECT statement queries the metrics.pg_stat_activity table for a row count and the most recent collection timestamp:

SELECT COUNT(*), MAX(collected_at) FROM metrics.pg_stat_activity;
 count |              max
-------+-------------------------------
  1014 | 2026-05-13 14:56:37.453882+00
(1 row)

A non-zero count with a recent timestamp confirms the collector is gathering metrics.
